HVE-2D

Performing a professional reconstruction can be a time-consuming process. You have to gather data from the crash scene, inspect the damaged vehicles, review accident reports and reduce all of the data to a usable form. You have to create a scaled crash site diagram and identify the physics calculations that would be most suitable to analyze the crash. You have to set up equations, enter the input data, work through the calculations and then fine-tune your analysis by repeating the calculations to study various scenarios. The whole process takes time.

HVE-2D™, with its built-in databases and visual user-interface can greatly reduce your data input and calculation time while improving the reliability of your analysis. For example, if your inputs have a vehicle moving in the wrong direction or a damage profile on the wrong side of the vehicle, you will see it immediately. HVE-2D also improves the accuracy of your analysis by providing engineering diagnostics and warning messages pertaining to violations of the Laws of Physics. Thorough documentation and detailed tutorials help you understand how to use HVE-2D. If that's not enough, EDC provides the best training and technical support in the business. All of this boosts your work performance and saves you time.

So . . . What is HVE-2D?

HVE-2D is an integrated environment for setting up and executing extensively validated reconstruction and simulation models, such as EDCRASH and EDSMAC4, to study a motor vehicle crash. These models allow users to reconstruct and simulate crashes involving one, two or any number of vehicles, as well as loss of control of single and articulated vehicles.

PROGRAM DETAILS

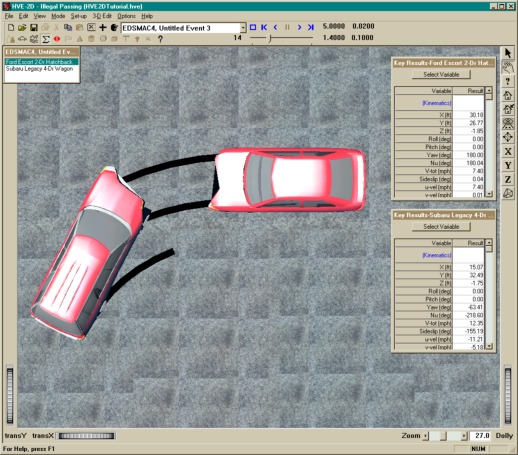

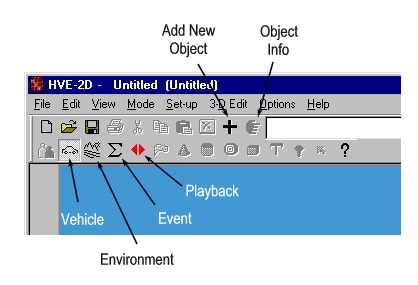

HVE-2D has a single-window design providing easy access to the main menu, toolbar, data entry dialogs, event controllers and other time-saving features. The same window is used when working in the Vehicle, Environment, Event and Playback Editors. Many of the viewer features can be simply toggled on or off by the user.

An overhead camera view with user-definable scale, pan and zoom control offers excellent visibility when setting-up and executing the event. Thumbwheels on the viewer (or a 3-button mouse) allow the user to drag or dolly the camera view. The camera can even be assigned to follow a vehicle's motion during a simulation.

An upgrade option called HVE-2D+ replaces the standard overhead 2-D view with the same 3-D viewers used in HVE . The 3-D viewers in HVE-2D+ allow cameras to be positioned anywhere and look everywhere in a 3-D world, just like HVE. HVE-2D+ users can easily set up ground level views and target-following cameras, such as those used to display a driver's view of an impending crash or show the view of an eyewitness observing a crash.

An example showing the capabilities of HVE-2D+ compared to the regular viewers of HVE-2D is shown below:

HVE-2D HVE-2D+

USING HVE-2D

Using HVE-2D is as easy as 1-2-3-4. First, select the vehicles from the database. Second, import or create your scaled crash site drawing to use as the background for your work. Third, set-up and execute the reconstruction or simulation. Fourth, view all numeric and graphic reports, and even produce movies (AVI format) for real-time playback. 1-2-3-4. It's just that easy.

1

Vehicle Editor - Select vehicles from databases according to Type, Make, Model, Year and Body Style. Vehicle types include Passenger Car, Pickup, Sport-Utility, Van, Truck, Trailer, Dolly and Fixed and Moving Barrier. Once you select a vehicle from the database, all of the data needed for your reconstruction or simulation is complete. If you need to make edits to the data, it's very intuitive. Edit exterior dimensions by clicking on the body. Edit tire parameters by clicking on the tire. You can change the weight, the color, the stiffness coefficients, any data that is important to your analysis.

2

Environment Editor - Create and edit or import scale drawings or models (DXF or VRML format) to use as the terrain for your reconstruction or simulation. You can edit the gravitational constant. You can create frictions zones or edit the friction factor for the entire roadway to simulate dry, wet, icy or other conditions. You can also use aerial photographs and textures, such as asphalt, concrete or grass, to enhance the appearance of the environment.

3

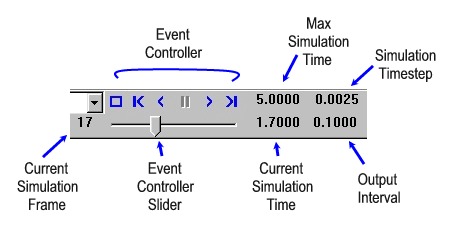

Event Editor - Setting up your reconstruction or simulation is fast. Simply choose the calculation method (e.g. EDSMAC4) for the event and then drag and drop the vehicles directly onto your scaled crash site diagram. Assign positions and velocities and use easily accessed dialogs to enter Driver Controls, Damage Profiles, Payloads, Wheel Data (Tire Blow-out, Displacement), Accelerometers and other information. Press the Play button on the Event Controller and immediately see the results of your inputs. View Trajectory Simulations and Key Results of simulations in progress. To fine-tune your analysis or study several scenarios, you can quickly edit positions and other key parameters and re-execute the events.

4





Playback Editor - View and print all program inputs and outputs contained in the Accident History, Audit Trail, Damage Data, Damage Profile, Driver Data, Messages, Momentum Diagrams (Damage, Scene), Program Data, Site Drawing, Variable Output and Vehicle Data reports. View Trajectory Simulations and dynamic Damage Profiles. Create AVI simulation movies using the Playback Window's video interface.

VALIDATED RECONSTRUCTION AND SIMULATION MODELS AVAILABLE FOR HVE-2D

EDCRASH
 -

EDCRASH is a reconstruction analysis of single- or two-vehicle accidents, including collision. EDCRASH primary purpose is to determine impact speed and delta-V (a measure of impact severity) based on accident site and vehicle damage measurements. EDCRASH is also well-suited for collisions with immovable barriers, such as bridge abutments and large trees.


EDSMAC
 -

EDSMAC is a simulation analysis of single- or two-vehicle accidents involving collision. Accident investigators can use EDSMAC to predict and visualize vehicle response before, during and after impact, and also determine impact velocity and delta-V. The procedure involves an initial estimate of the conditions of impact made by the user or supplied by an EDCRASH reconstruction; this is followed by a series of user-defined adjustments to the initial conditions until the final results duplicate the physical evidence (rest positions and vehicle damage) found at the accident site.


EDSMAC4
 -

EDSMAC4 is a simulation analysis of vehicle collisions. Based on EDSMAC, EDSMAC4 includes numerous extensions developed by EDC. Any number of vehicles, trailers, and/or barriers may be included. Simultaneous collisions between any number of objects are allowed (examples include a multi-vehicle freeway pile-up, pinning a vehicle between a striking vehicle and a tree, etc.). The original SMAC collision model has also been extended significantly, and now includes A and B stiffnesses for each side, as well as direct support for barrier collisions. EDSMAC4 also provides a robust model for collisions involving articulated vehicles towing any number of trailers, with or without dollys.


EDSVS
 -

EDSVS is a simulation analysis of the response of a motor vehicle to driver throttle, braking and steering inputs. EDSVS determines how the vehicle responds to driver inputs by generating the path, velocity, acceleration, tire forces and other data as a function of time. The path of the vehicle is also visually displayed on a scaled crash site diagram.


EDVTS
 -

EDVTS is a simulation analysis of the response of a vehicle-trailer system (either a tractor-trailer or automobile-trailer combination) to driver throttle, braking and steering inputs. EDVTS determines how the vehicle and trailer respond to driver inputs by generating the path, velocity, acceleration, tire forces and other vehicle-trailer data as a function of time. Accident investigators can use EDVTS to determine how a driver may have lost control of the vehicle-trailer combination.


EDGEN
 -

EDGEN uses positions and velocities supplied at up to eight user-specified locations (e.g. Initial, Pre-braking, Impact, etc) to determine the time required to travel between each location. Using this time, EDGEN calculates the average linear accelerations between each location, and then calculates the current velocity and position at each timestep between the user-entered positions.

ALSO AVAILABLE FOR HVE-2D

DamageStudio
 -

DamageStudio is a graphical analysis tool that allows the user to visualize collision data from an EDSMAC4 simulation, and to correlate collision damage with the kinetics (force magnitude and direction), delta-V, acceleration and other important collision parameters.


3-D Viewers
 -

3-D Viewers provices the upgrade option, HVE-2D+, which replaces the standard overhead 2-D viewers with the same 3-D viewers used in HVE . The 3-D viewers in HVE-2D+ allow cameras to be positioned anywhere and look everywhere in a 3-D world, just like HVE.


EDVDB
 -

EDVDB is a comprehensive vehicle database developed by EDC for use with HVE-2D. EDVDB contains several hundred unique vehicles. Every vehicle in the database is complete with all the data necessary to perform a complex reconstruction or simulation. The use of EDVDB will improve results, increase productivity and save time.


EDKEY
 -

The EDKEY provides the flexibility to use the software on multiple computers, such as a desktop and a laptop. Simply plug the EDKEY into the computer that you wish to run the software on, and the application is unlocked. This flexibility makes is easy to work on computers at your office, your home or while traveling.
